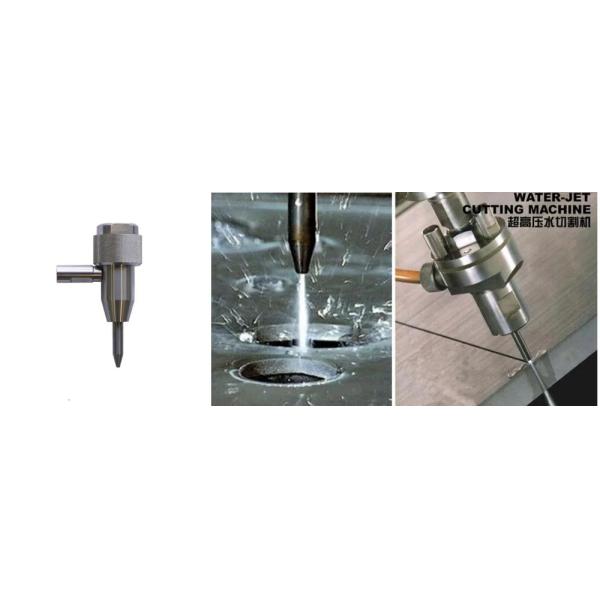

Long Lifetime Carbide Waterjet Nozzle Spare Parts Abrasive Cutting Nozzle High Pressure
Feature of carbide waterjet nozzle
1, Standard water jet nozzle: effectively extend the working life of the waterjet sand mixing pipe and successfully break through 150 hour working time of the traditional waterjet.
2, RIXIN enhanced nozzle: on the basis of type, further increase of strong performance, increase its density and hardness, and at the same time make its wear resistance to a higher leverl
3, RIXIN economy nozzle: using the same material and different production process , the production cost is greatly reduced, and the performance is well controlled .
4, RIXIN customized nozzle: we can produce according to customer requirement such as special shape or grinding or cost.
Description of carbide waterjet nozzle
| Item No | D (mm) | d (mm) | L (mm) |
| MR6030 | 6 | 0.76 | 76.2 |
| MR6040 | 6 | 1.02 | 76.2 |
| MR020 | 6.35 | 0.5 | 76.2 |
| MR030 | 6.35 | 0.76 | 76.2 |
| MR040 | 6.35 | 1.02 | 76.2 |
| MR7030 | 7.14 | 0.76 | 76.2 |
| MR7040 | 7.14 | 1.02 | 76.2 |
| MR76030 | 7.6 | 0.76 | 76.2 |
| MR76040 | 7.6 | 1.02 | 76.2 |
| MR945030 | 9.45 | 0.76 | 76.2 |
| MR945040 | 9.45 | 1.02 | 76.2 |
Application of carbide waterjet nozzle
1. Refers to the high pressure abrasive water jet machine tool jet exit is used as the abrasive nozzle is mixed withwater.
2. The use of ultra-high pressure technology can turn ordinary tap water pressure to 250 ~ 400 mpa pressure, and then through the inner hole diameter to 0.15 ~ 0.35 mm ruby nozzle spray forming speed is about 800 ~1000 m/s high speed jet.
3. The nozzle and sand tube not to cause the premature wear of pipe, in order to prolong the service life of the sand tube, before use, first with sand tube with water, ensure that the water in the center position.Rotary sand tube will increase to 120 degree of wear and tear.Should pay attention to the following three questions:
(1) the gem (diamond) have tube to the nozzle from the sand.
(2) check whether there is new gems (diamond) nozzle hole.
(3) the room appear mixed sand abrasion.
